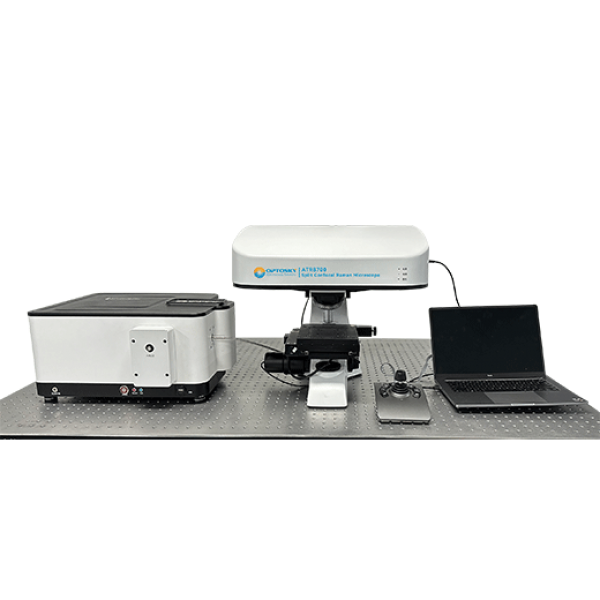

Modular Confocal Raman Microscope
Availability: In Stock
Modular Confocal Raman Microscope
Product Code: ATR8700
application
- Optosky new generation ATR8700 split confocal Raman microscopy imager equipped with a precision adjustable confocal pinhole, high resolution spectrometers, HD digital camera, and -70℃ deep cooling detector and other advanced optical components. It combines the advantages of the microscope and Raman spectrometer. The Raman microscopy detection platform makes it possible to "what you see is what you measure". The Raman microscope detection platform is a visual and precise positioning Raman detection platform, which allows the user to detect the Raman signals of different surface states on the sample, and can be displayed simultaneously on the computer, which is greatly Facilitates Raman micro-area detection.
- The high-end version of ATR8700 can fully auto-focus, auto-scan, and Oneclick operation. It can perform batch experiments, uniformity scanning, etc. without waiting, and can obtain highly reliable scanning imaging Raman data.
- ATR8700 raman instrument is equipped with an objective lens specially designed for the Raman system, which makes the laser spot close to the diffraction limit. The focus information is accurately and intuitively displayed on the computer through a 5-megapixel camera, which improves the quality of the Raman spectrum.
- ATR8700 is equipped with a spectrometer specially optimized for Raman microscopy systems, and can achieve optimal spectrum up to 0.5cm-1 resolution. The spectrometer has multiple built-in gratings. The gratings and their rotation angles can be set by software to meet the requirements of different resolutions and different wave number ranges.
- At the same time, ATR8700 uses high-performance Raman specially optimized for micro-Raman systems. It is industry-leading in terms of sensitivity, SNR, stability, etc., providing a strong guarantee for Raman research.
| Confocal Raman Microscope | |
| Excitation Wavelength | Max. 3 lasers of 532, 638, 785, 1064 nm are available |
| Spectral Range | 50-10000 cm-1 |
| Detector | 1) Deep cooling CCD : 2048×256 pixels, cooled to -70℃ 2) Deep cooling CCD 2048×256 pixels, cooled to -30℃ 3) Deep cooling CCD, 1024×128 pixels, cooled to -30℃ 4) Deep cooling InGaAs : 512×1 pixel 5) Deep cooling InGaAs: 1024×1 pixel |
| Spectral Resolution | 0.5-2.7 cm-1 |
| Focal Length | 210 mm, 350 mm , 510 mm, 810 mm optional |
| Spot Diameter | >1μm |
| Interface | USB3.0 |
| Microscopic Illumination | High brightness and long life white LED |
| Objective Lens | Standard configuration: 4X, 10X, 20X Optional configuration: 100X, 50X |
| Microscope Camera | 5-megapixel camera |
| Focus Method | Conjugate focus Pinhole confocal, 6-hole moving pinhole and infinitely adjustable confocal pinhole optional |
| Laser Stability | σ/μ <±0.2% |
| Spatial Resolution | Better than 2μm (X, Y) Better than 5μm (Z) |
| Laser Linewidth | 0.08 nm |
| Laser Power | 532nm: 80mW 638nm: 80mW 785nm: 300mW 1064nm: 500mW |
| Voltage | 100~240 VAC |
| Peak Power | <200 W |
- Automatic Raman imaging experiment, Auto-focus, Auto-scan
- 532, 638, 785, 1064nm and other excitation wavelengths are available.
- 3 excitation wavelengths support.
- Split type Instrument
- Spectral resolution up to 1.5cm-1.
- Compact Instrument, no fiber
- Rotated grating
- -70℃ deep cooling detector.
- Imaging range (100×100mm), automated imaging splicing
- Unique software controls switching light path.
- Quick positioning and focus;
- High-quality objective lens, Micron-level light spot;
- 5 million pixel cameras with clear image
- Interface : USB3.0
- Nanoparticles And New Materials
- Universities And Research Institutes
- Biotechnology : Biological Sciences
- Biopharma : Forensic Medicine Identification
- Material Science
- Chemistry : Medical Immunoassay
- Agriculture And Food Identification : Food & Beverage
- Water Pollution Analysis
- Energy: Gem And Inorganic Mineral Identification
- Environment: Environmental Science
Q: What are the key features of the Optosky ATR8700 Split Confocal Raman Microscopy Imager? A: The ATR8700 is a cutting-edge instrument featuring a precision adjustable confocal pinhole, high-resolution spectrometers, an HD digital camera, and a -70℃ deep cooling detector. It integrates the benefits of both a microscope and a Raman spectrometer, providing a "what you see is what you measure" capability for enhanced Raman micro-area detection.
Q: How does the ATR8700 improve Raman micro-area detection?A: The ATR8700's Raman microscopy detection platform allows for visual and precise positioning of Raman signals, enabling users to observe and analyze different surface states of a sample in real-time. This capability is displayed simultaneously on the computer, significantly facilitating the detection process.
Q: What automation features does the high-end version of ATR8700 offer?A: The high-end version of ATR8700 supports full automation with features such as auto-focus, auto-scan, and one-click operation. It can perform batch experiments and uniformity scanning without manual intervention, providing reliable and efficient Raman data acquisition.
Q: How does the ATR8700 ensure high-quality Raman imaging? A: The ATR8700 is equipped with a specially designed objective lens that achieves a laser spot close to the diffraction limit. The focus information is clearly displayed on the computer through a 5-megapixel camera, which enhances the quality of the Raman spectrum.
Q: What is the resolution of the ATR8700's spectrometer?A: The ATR8700's spectrometer is optimized for Raman microscopy and can achieve a spectral resolution of up to 0.5 cm⁻¹. It includes multiple built-in gratings, with rotation angles adjustable via software to accommodate various resolution and wave number range requirements.
Q: How does the ATR8700 perform in terms of sensitivity and stability?A: The ATR8700 is equipped with high-performance Raman optics specifically optimized for micro-Raman systems. It excels in sensitivity, signal-to-noise ratio (SNR), and stability, making it a leading choice for precise Raman research.
Q: Can the ATR8700 handle different wave number ranges?A: Yes, the spectrometer in the ATR8700 features multiple gratings that can be adjusted through software to meet different resolution and wave number range needs, allowing for versatile spectral analysis.
Q: What kind of interface does the ATR8700 use?A: The ATR8700 utilizes a USB3.0 interface for efficient and high-speed data transfer.
Q: What are the key features of the Optosky ATR8700 Split Confocal Raman Microscopy Imager?
A: The ATR8700 is a cutting-edge instrument featuring a precision adjustable confocal pinhole, high-resolution spectrometers, an HD digital camera, and a -70℃ deep cooling detector. It integrates the benefits of both a microscope and a Raman spectrometer, providing a "what you see is what you measure" capability for enhanced Raman micro-area detection.
Q: How does the ATR8700 improve Raman micro-area detection?
A: The ATR8700's Raman microscopy detection platform allows for visual and precise positioning of Raman signals, enabling users to observe and analyze different surface states of a sample in real-time. This capability is displayed simultaneously on the computer, significantly facilitating the detection process.
Q: What automation features does the high-end version of ATR8700 offer?
A: The high-end version of ATR8700 supports full automation with features such as auto-focus, auto-scan, and one-click operation. It can perform batch experiments and uniformity scanning without manual intervention, providing reliable and efficient Raman data acquisition.
Q: How does the ATR8700 ensure high-quality Raman imaging?
A: The ATR8700 is equipped with a specially designed objective lens that achieves a laser spot close to the diffraction limit. The focus information is clearly displayed on the computer through a 5-megapixel camera, which enhances the quality of the Raman spectrum.
Q: What is the resolution of the ATR8700's spectrometer?
A: The ATR8700's spectrometer is optimized for Raman microscopy and can achieve a spectral resolution of up to 0.5 cm⁻¹. It includes multiple built-in gratings, with rotation angles adjustable via software to accommodate various resolution and wave number range requirements.
Q: How does the ATR8700 perform in terms of sensitivity and stability?
A: The ATR8700 is equipped with high-performance Raman optics specifically optimized for micro-Raman systems. It excels in sensitivity, signal-to-noise ratio (SNR), and stability, making it a leading choice for precise Raman research.
Q: Can the ATR8700 handle different wave number ranges?
A: Yes, the spectrometer in the ATR8700 features multiple gratings that can be adjusted through software to meet different resolution and wave number range needs, allowing for versatile spectral analysis.
Q: What kind of interface does the ATR8700 use?
A: The ATR8700 utilizes a USB3.0 interface for efficient and high-speed data transfer.
