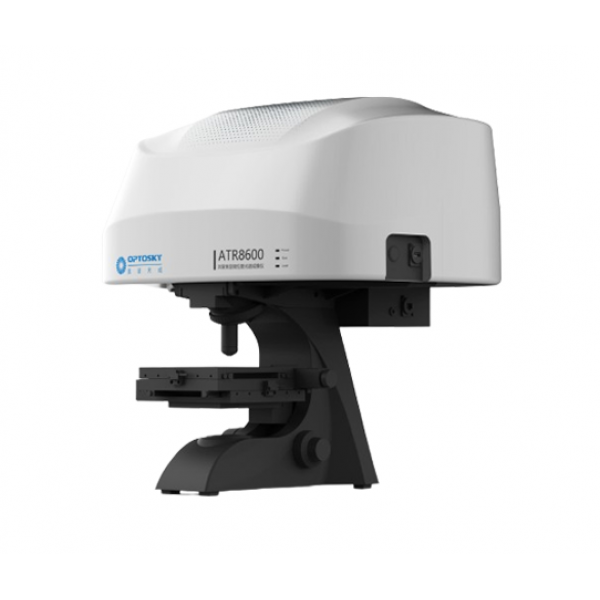

Compact Confocal Raman Microscope

• The ATR8600 compact confocal Raman microscopy has built-in pinhole confocal, high-resolution spectrometer, and HD digital imaging technology. It combines the advantages of the microscope and Raman spectrometer. The Raman microscopy detection platform makes it possible to "what you see is what you measure". The Raman microscope detection platform is a visual and precise positioning Raman detection platform, which allows the user to detect the Raman signals of different surface states on the sample, and can be displayed simultaneously on the computer, which is greatly Facilitates Raman micro-area detection.

• The high-end version of ATR8600 can fully auto-focus, auto-scan, and Oneclick operation. It can perform batch experiments, uniformity scanning, etc. without waiting, and can obtain highly reliable scanning imaging Raman data.

• ATR8600 raman instrument is equipped with an objective lens specially designed for the Raman system, which makes the laser spot close to the diffraction limit. The focus information is accurately and intuitively displayed on the computer through a 5-megapixel camera, which improves the quality of the Raman spectrum.

• ATR8600 is equipped with a spectrometer specially optimized for Raman microscopy systems. The spectrometer has multiple built-in gratings. The gratings and their rotation angles can be set by software to meet the requirements of different resolutions and wave number ranges.

• At the same time, ATR8600 uses high-performance Raman specially optimized for micro-Raman systems. It is industry-leading in terms of sensitivity, SNR, stability, etc., providing a strong guarantee for Raman research.

• Automatic Raman imaging experiment, Auto-focus, Auto-scan

• 532, 638, 785, 1064nm and other excitation wavelengths are available.

• 3 excitation wavelengths support.

• Spectral resolution up to 1.5cm-1.

• Compact Instrument, no fiber

• Rotated grating

• -70℃ deep cooling detector.

• Imaging  range (100×100mm), automated imaging splicing

• Unique software controls switching light path.

• Quick positioning and focus;

• High-quality objective lens, Micron-level light spot;

• 5 million pixel cameras with clear image

• Interface : USB3.0

• Nanoparticles And New Materials

• Universities And Research Institutes

• Biotechnology : Biological Sciences

• Biopharma : Forensic Medicine Identification

• Material Science

• Chemistry : Medical Immunoassay

• Agriculture And Food Identification : Food & Beverage

• Water Pollution Analysis

• Energy: Gem And Inorganic Mineral Identification

• Environment: Environmental Science

Q: What are the main features of the ATR8600 Confocal Raman Microscope?
A: The ATR8600 is a compact confocal Raman microscope that combines built-in pinhole confocal technology, high-resolution spectrometry, and HD digital imaging. It integrates the functions of a microscope and a Raman spectrometer, providing a "what you see is what you measure" capability for precise Raman micro-area detection.

Q: How does the ATR8600 facilitate Raman micro-area detection?
A: The ATR8600's detection platform allows users to visually and precisely position Raman signals on the sample. The results are displayed simultaneously on the computer, making it easier to detect and analyze different surface states of the sample.

Q: What automation features does the ATR8600 offer?
A: The high-end version of the ATR8600 supports full automation with features such as auto-focus, auto-scan, and one-click operation. It can perform batch experiments and uniformity scanning without manual intervention, providing reliable and efficient data acquisition.

Q: How does the ATR8600 ensure high-quality Raman imaging?
A: The ATR8600 is equipped with an objective lens specially designed for Raman applications, achieving a laser spot close to the diffraction limit. The focus information is displayed on the computer via a 5-megapixel camera, enhancing the accuracy and quality of the Raman spectra.

Q: What is the resolution of the ATR8600's spectrometer?
A: The ATR8600's spectrometer is optimized for Raman microscopy and features multiple built-in gratings. The gratings and their rotation angles can be adjusted via software to meet various resolution and wave number range requirements, achieving high-resolution spectral analysis.

Q: How does the ATR8600 perform in terms of sensitivity and stability?
A: The ATR8600 is designed with high-performance optics specifically optimized for micro-Raman systems. It excels in sensitivity, signal-to-noise ratio (SNR), and stability, ensuring reliable and precise Raman research results.

Q: Can the ATR8600 accommodate different wave number ranges?
A: Yes, the ATR8600's spectrometer includes multiple gratings that can be set through software to accommodate different wave number ranges and resolutions, providing versatility for various spectral analyses.

Q: What kind of interface does the ATR8600 use?
A: The ATR8600 features a USB3.0 interface for fast and efficient data transfer between the microscope and the computer.
