Availability: In Stock

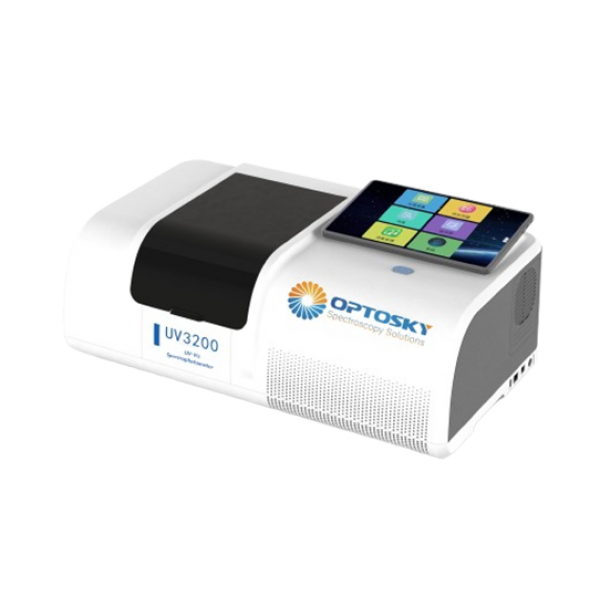

Spectrophotometer UV VIS NIR
Product Code: UV3200
Ask About This Product
application

The UV-Vis Spectrophotometer UV3200 developed by Optosky is a Scientific Research grade spectrophotometer with wide application and stable performance. It adopts a proportional detection dual-beam system, which enables the instrument to have higher stability and extremely low stray light; it automatically eliminates errors caused by changes in the light source and sample, making the measurement results closer to the true value.

UV3200 UV-Vis Spectroscopy technology adopts a unique wavelength control system to achieve higher wavelength accuracy; precise bandwidth to make test data more accurate; high-performance photoelectric converter to make the instrument more sensitive; equipped with ultra-low stray light dual monochromator system, Achieve 8Abs measurement; choose a light source with guaranteed quality to ensure the stability and reliability of the light source.

The UV3200 software is designed in Chinese, simple and beautiful, easy to operate, and has functions such as spectral scanning, photometric measurement, time scanning, kinetic measurement, data transmission, saving, and printing.

UV3200 also has a large sample chamber that can accommodate large accessories and integrating sphere accessories for spectral and diffuse reflectance testing. The rich accessories can be freely expanded to meet various application requirements.



Tags: UV
UV-VIS-NIR Spectrophotometer
Wavelength-Range 185-900nm
Beam double beam
Light-Source Deuterium lamp, halogen lamp
Sample Cell Channel 6 channels, automatic switching
Detectors photomultiplier tube
Metering Type ±0.3nm
Wavelength-Accuracy ±0.3nm
Wavelength Repeatability ±0.05nm
Resolving Power 0.1nm
Spectral Bandwidth 0.1, 0.2, 0.5, 1, 2, 5nm
Stray Light 0.00005% or less (220nm, NaI)
Metering Range Absorbance: -8~8Abs
Photometric Accuracy ±0.002Abs (0.5Abs), ±0.003Abs (1Abs), ±0.006Abs (2Abs), ±0.3%T
Photometric Reproducibility ±0.001Abs (0.5Abs), ±0.001Abs (1Abs), ±0.003Abs (2Abs), ±0.1%T
Baseline Straightness ±0.0004Abs (200-860nm) light source after one hour
Baseline Stability One hour after the light source is lit below 0.0003Abs/h (700nm)
Noise Level 0.00005Abs
Working-Temperature 15-35℃
Working-Humidity 30%~80%
Sizes 850mm x 400mmx 240mm
Tags: UV

  • Super stability
  • Automatic six-joint cell: 6 samples can be placed at one time
  • Dual monochromator design
  • Low stray light
  • ultra low noise
  • High stability
  • Stylish appearance
  • Easy-to-use analysis software

Tags: UV

Electricity, Electronics, and Optics

  • Conduct high-level absorbance measurements for polarization films.
  • Perform absolute reflectance measurements for anti-reflective films.
  • Measure the transmittance of functional films.
  • Evaluate the transmittance of solar cell cover glass.
  • Conduct absolute reflectance measurements for highly reflective mirrors.


Semiconductors

  • Measure diffuse reflection spectra of semiconductor material and calculate their band gaps using the Tauc method.


Chemicals, Films, and Materials

  • Perform transmittance and reflectance measurements for various films.
  • Measure the thickness of thin films.
  • Conduct transmittance, reflectance, and color measurements of plastics.
  • Measure interference waveforms to calculate the thickness of cling films.


Medicines, Cosmetics, and Life Sciences

  • Conduct raw material confirmation tests.
  • Measure enzyme reactions.
  • Quantify proteins and nucleic acids.
  • Measure cosmetic colors and ultraviolet screening.
  • Evaluate the optical properties of nanoparticles.
  • Measure the thermal stability (Tm) of oligonucleotide therapeutics.
  • Measure absorption spectra to calculate concentrations of dsDNA and BSA.


Environment and Water Quality Monitoring

  • Quantify hexavalent chromium.
  • Measure total phosphorus and total nitrogen in river water, lakes, and marshes.
  • Conduct turbidity measurements.
  • Quantify iron, copper, arsenic, ammonia, and other substances in water.


Construction Building Materials

  • Measure transmittance of window glass and window glass films.
  • Measure reflectance for paints and building materials.


Textiles

  • Measure transmittance, reflectance, and ultraviolet screening of textiles.
  • Conduct textile color measurements.
  • Evaluate the total transmittance spectrum of cellulose nanofibers (CNF).
  • Measure the total transmittance spectrum of cellulose nanofiber (CNF) to calculate the UV protection factor of ultraviolet protective clothing.


Foods

  • Measure  absorption spectra to quantify vitamins such as vitamin B2, food additives, and minerals.
  • Measure phenols leached from containers and packaging agents.


Tags: UV

What is Applications of Optosky UV VIS NIR Spectrophotometer?
Environmental Monitoring:
  • Water Quality Analysis: Detect and quantify pollutants, contaminants, and chemical compounds in various water sources.
  • Air Quality Monitoring: Measure atmospheric pollutants and assess their concentrations.
  • Soil Analysis: Evaluate soil composition and detect contaminants or nutrient levels.
Scientific Research:
  • Spectral Characterization: Determine the optical properties of materials and substances.
  • Photometric Studies: Analyze absorption and transmission spectra for research in chemistry and materials science.
  • Kinetics and Dynamics: Study reaction rates and dynamic processes through time-resolved spectroscopy.
Healthcare and Clinical Analysis:
  • Biochemical Assays: Measure concentrations of biomarkers, proteins, and other biological molecules.
  • Drug Testing: Analyze pharmaceutical compounds for quality control and formulation studies.
  • Clinical Diagnostics: Support diagnostic tests and research in medical laboratories.
Agriculture and Food Industry:
  • Pesticide Residue Testing: Ensure food safety by detecting pesticide residues in crops and agricultural products.
  • Soil and Crop Analysis: Assess soil health and crop composition for improved agricultural practices.
  • Feed and Veterinary Analysis: Test animal feed and veterinary products for quality and safety.
Industrial and Manufacturing:
  • Process Control: Monitor and control chemical processes in industries such as petrochemicals and pharmaceuticals.
  • Quality Assurance: Perform routine inspections of product quality and consistency.
Calibration and Standards:
  • Standard Material Verification: Validate and calibrate standard materials and reference samples for accurate measurements.
Geological and Hydrological Studies:
  • Mineral Analysis: Measure metal elements and inorganic salts in geological samples.
  • Marine and Water Resource Studies: Conduct analyses related to marine geology and hydrology


What is Optosky Spectrophotometers:  Advantages and Competitiveness
Optosky spectrophotometers offer a competitive edge through several distinctive advantages:
Proven Experience: With 20 years of manufacturing expertise, Optosky ensures high-quality, reliable instruments honed by extensive industry experience.
Broad Product Range: Their extensive selection includes UV, VIS, and NIR spectrophotometers, catering to diverse analytical needs across various fields.
Exceptional Value: Optosky combines high performance with cost-efficiency, delivering advanced technology at a more accessible price point compared to many competitors.
Comprehensive Support: Optosky offers 24/7 customer service and a 2-year warranty, providing peace of mind and reliable assistance whenever needed.
Innovative Solutions: Featuring self-developed patents, their spectrophotometers incorporate cutting-edge technology, ensuring users benefit from the latest advancements in the field.
Flexible Testing Options: Prospective customers can take advantage of free demo trials and sample testing, experiencing the equipment's capabilities firsthand before making a decision.
Versatile Applications: Optosky’s instruments are designed for a wide range of applications, enhancing their utility across various scientific and industrial sectors.
Global Reach: Supported by a network of worldwide distributors, Optosky ensures easy access to products and support, regardless of geographic location.

Tags: UV
