ATX3100O Plus Portable Mineral Specialized Analyzer
Description
Availability: In Stock

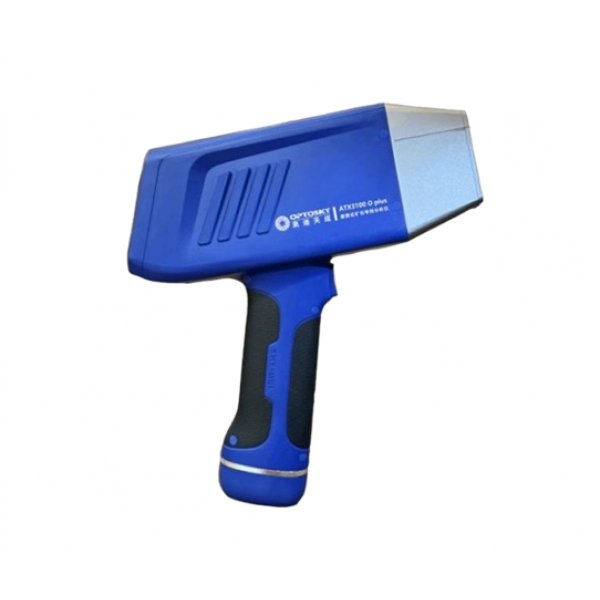

ATX3100O Plus Portable Mineral Specialized Analyzer
Product Code: ATX3100O Plus
application
Description
The ATX3100O Plus Portable Mineral Specialized Analyzer by Optosky is a compact, lightweight, and rugged device with a high-performance SDD detector, designed for fast, non-destructive elemental analysis. It analyzes elements from Mg to U with a simple trigger pull, eliminating the need for costly and time-consuming lab tests.
Ideal for mining, geology, ore grading, and exploration, it enables quick identification of rich and poor ores, mine mapping, and tailings analysis. The Portable Mineral Specialized Analyzer offers accurate results in harsh environments, making it perfect for on-site testing and field analysis, improving decision-making in resource extraction and mineral exploration.
Features
- One-click operation eliminates errors, improving accuracy. Average value statistics from multiple tests show precision.
- Automatic calibration requires no manual input. Unlike destructive methods, the sample remains undamaged.
- The instrument works in temperatures as low as -35°C, ensuring stable resolution.
- With a high-performance SDD detector, it provides targeted solutions for mineral exploration and mining.
Model | ATX3100O plus |
Test Mode | Ore All-Purpose Mode, Ore Dual-Beam Precision Mode, Soil Mode |
Analysis Range | Measures elements from ppm to 99.99%: Mg、A1 、Si 、P 、S、Ag 、Cd 、Sn 、Sb、Re.Ir 、Pt 、Ru、Rh 、Pd 、Ta 、W 、Hg 、Se、Au 、Br 、Pb 、Bi 、Zr、Nb 、Mo 、Ti、V 、Cr 、Mn、Fe 、Co.Ni 、Cu 、Zn 、Hf ，etc. |
Software Algorithm | FP basic parameters, Compton correction method, EC empirical coefficient algorithm |
Excitation Source | 4W high power, 50KV variable voltage |
Detector | SDD detector (resolution < 129eV) |
Filter | Swiss motor drives 6 interchangeable filters |
Standard Sample | 316L stainless steel window protection cover and one round piece |
Battery | Standard with 2 lithium batteries (7.2V/6600mAh) |
Display Screen | 3.5-inch TFT industrial-grade touchscreen |
Data Storage | 32GB high-capacity storage card: ≥280,000 data sets and spectra |
Safety Operation | One-click "detection" with automatic software timing lock and auto-stop function: X-ray automatically shuts off within 2 seconds when no sample is detected. |
Dimensions | 230mm x 65mm x 90mm (excluding handle) |
Weight | 1.6kg, 1.65kg with batteries |
Operating Temperature | 15-35℃ |
Working Humidity | 30％～80% |
