UV3000B-Plux-UV-Vis-NIR Spectrophotometer
Latest
Availability: In Stock

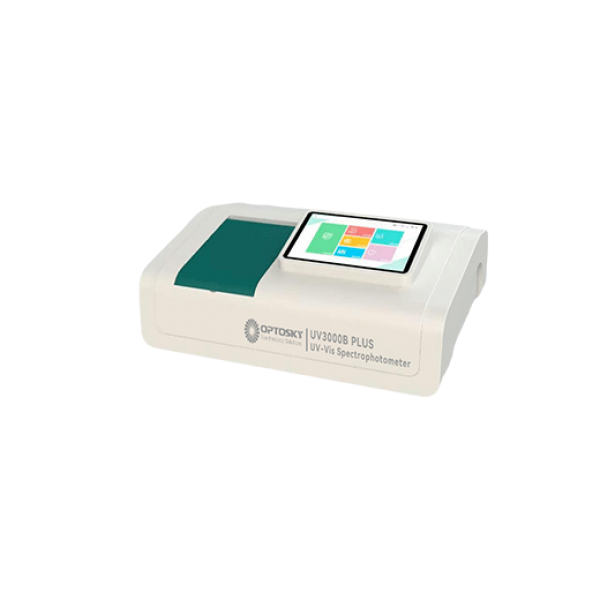

UV3000B-Plux-UV-Vis-NIR Spectrophotometer
Product Code: UV3000B-Plus
application
Description
- UV3000B plus is a brand-new product meticulously developed by Optosky. Adopting a double-beam optical system, it fully realizes the integration of high-precision and high-reliability measurement, which can meet the requirements of various applications. It is applicable to biological research, biological industry, pharmaceutical analysis, pharmacy, teaching and research, environmental protection, food hygiene, clinical testing, health and epidemic prevention and other fields.
- UV3000B plus has a wide wavelength range, which can meet the wavelength requirements of various fields. The fully automatic design concept realizes simple measurement methods. The large-scale integrated circuit design greatly improves the scalability and reliability of the system. Combined with the improved and optimized optical path design, imported light sources and receivers, it creates high performance and high reliability of the system.
- UV3000B plus is provided with abundant measurement methods, including wavelength scan, time scan, multi-wavelength measurement, multi-order derivative measurement (optional), dual-wavelength & triple-wavelength measurement (optional), DNA/protein measurement (optional), etc., which can meet different measurement requirements and can be directly displayed on the 6-inch large screen. More accurate and flexible measurement such as spectral scanning can be realized through PC software control. The measurement data can be output through a printer. It is equipped with a USB interface, which can save measurement parameters and data after power failure for user convenience.
- UV3000B plus has a wealth of accessories. Users can optionally choose single-hole holder, manual 4-cell holder, automatic 8-cell holder, thin film sample holder, test tube holder, 1cm cuvette holder, 5cm cuvette holder, etc. according to their requirements.
Features
- Ultra-strong stability during data acquisition, the double-beam optical system conducts monitoring to ensure high precision and long-term stability of the instrument.
- A variety of measurement methods to meet different test requirements
- Adjustable spectral bandwidth: with six specifications of 4nm, 2nm, 1nm, 0.5nm, 0.2nm and 0.1nm, it can meet the strict requirements of pharmacopoeias of various countries and different users.
- Simple and intuitive operation interface: greatly improves the user's learning speed.
- Equipped with a 6-inch keypad large screen, supporting online data processing.
- Rich optional accessories and strong instrument function scalability
Model | UV3000B plus | |
Wavelength Range | 190-1100nm | |
Optical System | Double-beam | |
Wavelength Accuracy | ±0.3nm | |
Wavelength Repeatability | ≤0.1nm | |
Spectral Bandwidth | 1.0/2.0nm adjustable | |
Photometric Repeatability | 0.1% T | |
Photometric Accuracy | ±0.2% T | |
Stray Light | ≤0.02% | |
Measurement Mode | Transmittance, absorbance, concentration, energy | |
Wavelength Adjustment | Automatic adjustment | |
Photometric Range | -4~4A | |
Light Source | Imported deuterium lamp, imported tungsten lamp | |
Detector | Imported silicon photodiode | |
Baseline Drift | 0.0004A/h（500nm after warm-up) | |
Display Mode | 6-inch high-brightness LCD screen | |
Specifications | 645*430*240mm，22.8Kg | |
Power Supply and Power Consumption | AC 220V/50Hz，120W | |
