Product Introduction | FS2000 Temperature Sensing Grating Signal Processing System: One Step Ahead in Fire Warning

In tunnels, utility tunnels, petrochemical facilities, and power infrastructure, fire monitoring is challenged by complex environments, long monitoring distances, and numerous interference factors.

Traditional point-type detection offers limited coverage and fails to achieve continuous monitoring. Electromagnetic interference and flammable/explosive environments impose stricter safety requirements on equipment. Complex system integration and insufficient interface compatibility also increase deployment and maintenance costs.

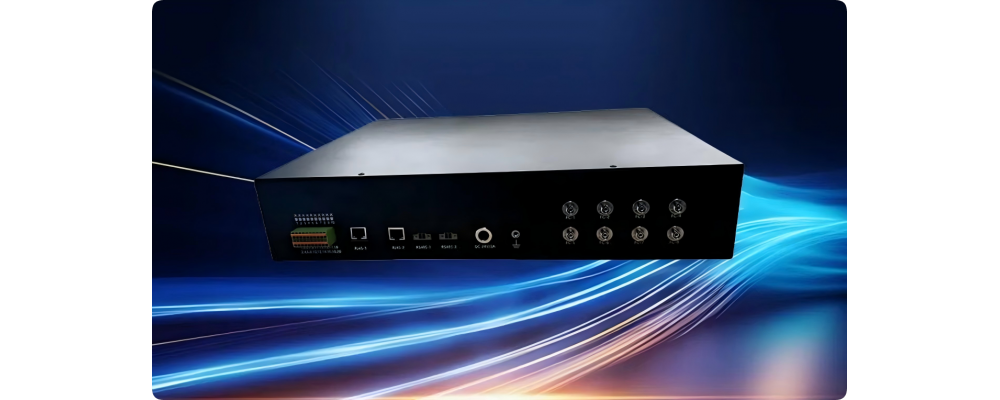

The Optosky FS2000 Temperature Sensing Grating Signal Processing System is a temperature detection solution that supports long-distance continuous monitoring, featuring stability, reliability, and intrinsic safety. It enables early warning and continuous surveillance of fire hazards.

01  Fiber Bragg Grating Temperature Sensing: Stable, Reliable, and Scalable Monitoring

The FS2000 system is based on fiber Bragg grating (FBG) temperature sensing technology. It operates through a signal processing unit working in tandem with temperature sensing cables, enabling real-time and precise detection of temperature field variations.

• Zoned Alarm Technology, Flexible and Efficient Deployment

Utilizing FBG-based zoned alarm technology, fire compartments can be configured as needed. A single channel offers a wide measurement range, simplifying on-site construction and improving deployment efficiency.

• Long-Distance Transmission, Suitable for Large-Scale Monitoring

With an efficient light source design and higher output power, the system achieves long-distance signal transmission, meeting the demands of large-area, remote monitoring.

• High Reliability Assurance

Optical integration technology reduces the use of discrete optical components, effectively lowering failure risks and enhancing overall system stability and long-term operational reliability.

• Intrinsic Safety, Suitable for High-Risk Environments

Using optical fiber as the transmission and sensing medium, the system achieves electro-free detection with intrinsic safety advantages, along with excellent resistance to electromagnetic interference.

• Multiple Interfaces and Alarm Modes, Flexible Integration

Supports RS485, Ethernet, current output, and dry contact interfaces for easy system integration. Offers alarm modes including differential temperature and fixed temperature, improving the timeliness and accuracy of fire detection.

02  Product Parameters

Technical Parameter	Value	Remarks
Maximum number of temperature sensing elements per channel	60	Each sensing element detects a distance of 6.6m or 10m
Number of channels	8	A single device supports a maximum detection distance of 4.8km
Wavelength range	1530-1570nm
Optical resolution	0.2nm
Display resolution	0.3°C
Detection cycle	0.5sec
Fiber optic interface	8 × FC/APC
Output - Network	1 × RJ45	UDP/TCP-IP
Output - Serial	1 × RS485	Modbus protocol
Output - Dry contacts	10 groups	8 groups of normally open fire alarm contacts 1 group of normally open pre-alarm contacts 1 group of normally closed fault contacts
Environmental Parameters
Operating temperature	-10°C ~ 50°C
Storage temperature	-40°C ~ 70°C
Operating relative humidity	≤95% RH, non-condensing
Power Supply Parameters
Power supply	DC 24V ±15%
Power consumption	10W typical, 15W maximum
Physical Parameters
Dimensions (W×H×D)	483.4mm× 88mm × 350mm
Installation method	Rack-mounted

03  Continuous Temperature Safety Monitoring for Critical Infrastructure

The FS2000 Temperature Sensing Grating Signal Processing System, based on fiber Bragg grating technology, delivers long-distance, continuous, stable, and reliable temperature monitoring capabilities, providing more proactive fire safety protection for critical infrastructure.

• Transportation Infrastructure

Temperature monitoring and fire early warning for highway tunnels, rail transit tunnels, and station areas, ensuring safe operation of transportation systems.

• Energy and Power Facilities

Continuous temperature monitoring for critical areas such as petrochemical storage tanks, oil pipelines, refining units, cable tunnels, and substations.

• Urban Utility Tunnels

Real-time temperature monitoring of the operating environment for multiple types of pipelines within utility tunnels, enhancing the safety level of urban infrastructure.

• Warehousing and Logistics Spaces

Fire risk monitoring for large warehouses and logistics centers, ensuring the safety of stored goods and operational stability.
