Product Introduction | ATE3100 Handheld Hyperspectral Water Quality Analyzer: On-Site Water Testing with Immediate Results

In scenarios such as water environment supervision, water utility inspection, and emergency monitoring: traditional detection methods rely on manual sampling and laboratory analysis, resulting in long processes and extended waiting times; multiple parameters often require repeated sampling and testing, leading to low efficiency and high costs.

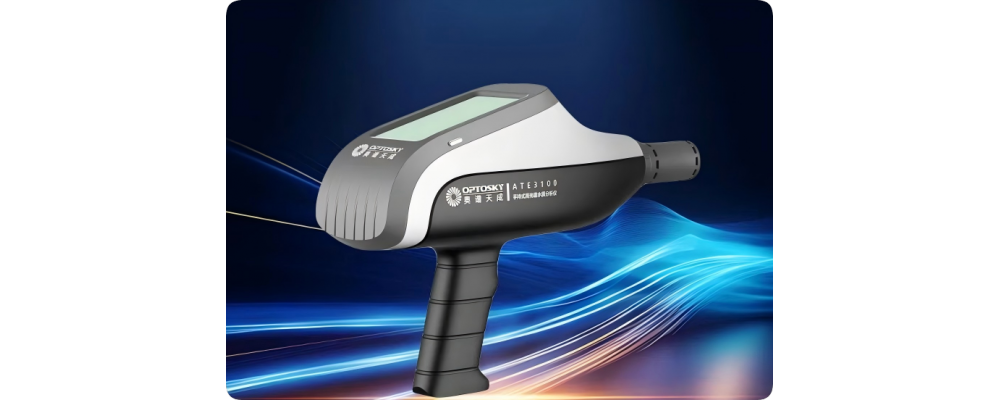

Optosky introduces the new ATE3100 Handheld Hyperspectral Water Quality Analyzer for scenarios such as sudden pollution incidents, routine inspections, or law enforcement evidence collection——portable, efficient, reagent-free, capable of obtaining multiple parameters in a single measurement, significantly improving on-site detection efficiency.

01  Product Performance and Advantages

• Reagent-Free, Fast Results

The ATE3100 can complete the detection of multiple water quality parameters within 1 minute, reducing waiting time by 90% compared to traditional methods, quickly responding to on-site detection needs, and improving work efficiency.

• Low-Cost Operation, More User-Friendly for Long-Term Use

No chemical reagents are required, and the detection process involves zero consumables. Detection and data viewing can be completed with just a mobile phone. A single unit can save 30,000 RMB in annual operational costs, lowering the barrier to use for customers.

• Authentic and Reliable Data, Providing a Stronger Basis for Supervision

A single measurement can simultaneously obtain six parameters including COD, Turbidity, TSS, Total Phosphorus, Total Nitrogen, and Ammonia Nitrogen, reducing repeated sampling and providing a comprehensive understanding of water quality status.

02  Product Parameters

Optical Parameters
Light Source	Xenon lamp, theoretical lifespan > 10 years
Power Consumption	2W
Spectral Range	200–1100 nm
Spectral Resolution	Better than 5 nm
Integration Time	> 1 ms (adjustable)
Effective Pixels	2048
Analytical Parameters
Detection Principle	Transmission full-spectrum method
Measured Parameters	COD, Turbidity, TSS, Total Phosphorus, Total Nitrogen, Ammonia Nitrogen, etc.
Measurement Range	COD: 0–500 mg/L Turbidity: 0–100NTU TSS: 0–100 mg/L Total Nitrogen: 0–10 mg/L Total Phosphorus: 0–10 mg/ LAmmonia Nitrogen: 0–10 mg/L
Measurement Deviation	≤ 20% F.S.

03  Product Highlights

• Ultra-lightweight, ultra-compact size, easy to carry

• Built-in screen with a Chinese operating system. Simple to operate, requires no special training, allowing users to easily control the instrument.

• Built-in GPS, can integrate angle, altitude, temperature, and humidity sensors. Automatically records sampling point location.

• Wavelength Range: 200-1100 nm.

• Spectral Resolution: 3nm

• Accuracy Deviation: <20%

• Built-in lithium battery, continuous operation time on a single charge >3h

04  An On-Site Tool for Multi-Industry Water Quality Monitoring

The ATE3100 Handheld Hyperspectral Water Quality Analyzer, with its portable design and full-spectrum analysis capability, truly brings water quality monitoring to the field and into real-time, providing efficient and reliable data support for environmental supervision, water utility management, and aquatic ecosystem protection.
