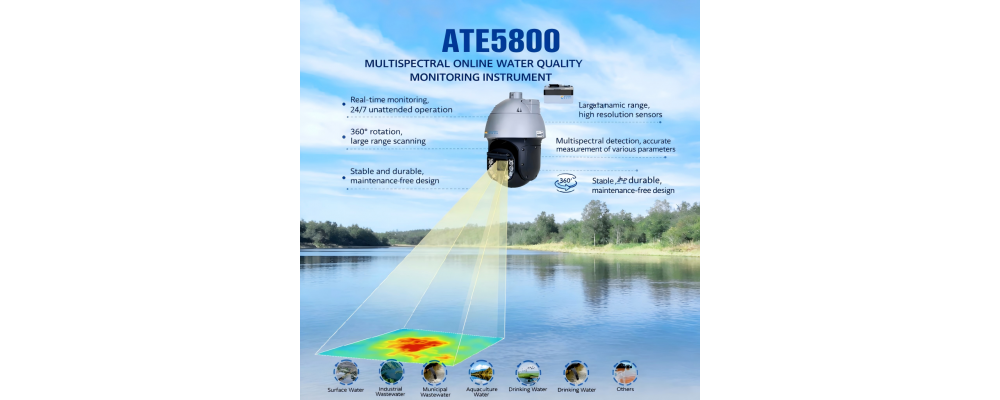

New Product Launch | Multispectral Online Water Quality Monitor ATE5800

Optosky Environmental Protection Product Line

Real-time monitoring, accurate inversion, abnormal warning — Making every drop of water visible, controllable, and predictable.



Introduction

Water is the source of life, and water quality safety concerns millions of households. However, traditional water quality monitoring methods often suffer from long cycles, high costs, and data lag, making it difficult to meet current dynamic and refined water environment management needs.

Optosky proudly introduces the ATE5800 Multispectral Online Water Quality Monitor, featuring advanced multispectral imaging technology, intelligent algorithms, and stable industrial design, providing all-weather water quality monitoring solutions for rivers, lakes, reservoirs, drinking water sources, discharge outlets, and other scenarios.



1. Product Overview

The ATE5800 is equipped with six core spectral bands: 450nm, 550nm, 660nm, 720nm, 780nm, and 840nm, each with a bandwidth of approximately 15nm, supporting customized spectral channel configurations. Through multi-band signal fusion and algorithm inversion, it can accurately obtain more than 20 key water quality parameters including turbidity, chlorophyll-a, cyanobacteria density, total phosphorus, total nitrogen, COD (Chemical Oxygen Demand), CDOM, and suspended solids (SS).

Moreover, the device features powerful water quality anomaly recognition capabilities, capable of real-time monitoring of cyanobacteria bloom aggregation, illegal discharge at outfalls, and sudden turbidity changes, triggering timely warnings to provide accurate data support for water quality management and pollution prevention.



2. Product Features Overview

• Online operation, 24-hour continuous monitoring

• 360° rotation for wide-range coverage

• Multi-parameter accurate inversion, 20+ water quality indicators

• 33x optical zoom, precise positioning

• Built-in wiper, defogging, and defrosting functions

• 4G communication, remote control and warning

• Waterproof and dustproof, suitable for field environments

• Flexible installation (pole-mounted, buoy-mounted, vessel-mounted, wall-mounted, etc.)

3. Core Highlights

• Multispectral Fusion, Accurate Inversion

• 6 narrow-band spectral channels (bandwidth ~15nm), optimized for water quality indicators

• Capable of inverting 20+ water quality parameters, covering routine and characteristic indicators

• Continuously upgraded algorithms to adapt to different water body environments

360° Omnidirectional Monitoring, No Blind Spots

• Horizontal 0°~360° continuous rotation, vertical -20°~+90° automatic flip

• 33x optical zoom, precise positioning of key areas such as discharge outlets and cyanobacteria aggregation zones

• Multiple intelligent paths including preset points, cruising, and tracking for automated inspection

All-Weather Stable Operation, Resistant to Harsh Environments

• Operating temperature -40℃~+70℃, protection level TVS 8000V lightning and surge protection

• Built-in wiper, defogging, and defrosting functions for long-term field monitoring

• Waterproof and dustproof design, supporting multiple installation methods including shore poles, buoys, and vessel mounting



Real-time Transmission, Intelligent Warning

• Real-time data and video transmission via 4G/wired network

• Supports multiple protocols including RTSP, GB/T28181, ONVIF for seamless integration with existing platforms

• Automatic alarm triggering for abnormal situations (email, switch output, etc.), achieving "monitoring-warning-response" closed loop

4. Application Scenarios

• Surface Water Quality Monitoring

• Real-time monitoring of turbidity, chlorophyll, total phosphorus, total nitrogen, and other indicators in rivers, lakes, and reservoirs, grasping dynamic changes and warning of water quality deterioration.

• Drinking Water Source Safety Protection

• 24/7 uninterrupted monitoring of water sources, strictly preventing cyanobacteria blooms and organic pollution to ensure drinking water safety.

• Black and Odorous Water Body Monitoring and Treatment

• High-frequency monitoring of urban rivers to identify COD, ammonia nitrogen exceedances, and sediment pollution, providing real-time data for treatment.

• Industrial Wastewater Discharge Monitoring

• Deployed at discharge outlets to monitor COD, suspended solids, and other indicators in real-time, capturing illegal discharge behaviors to assist environmental law enforcement.

• Cyanobacteria Bloom Warning and Prevention

• Multispectral accurate identification of cyanobacteria aggregation areas, providing 1-3 days early warning of bloom outbreaks to guide salvage and prevention efforts.

• Emergency Pollution Response

• Rapid deployment for emergencies, real-time tracking of pollutant diffusion range to assist emergency command.
