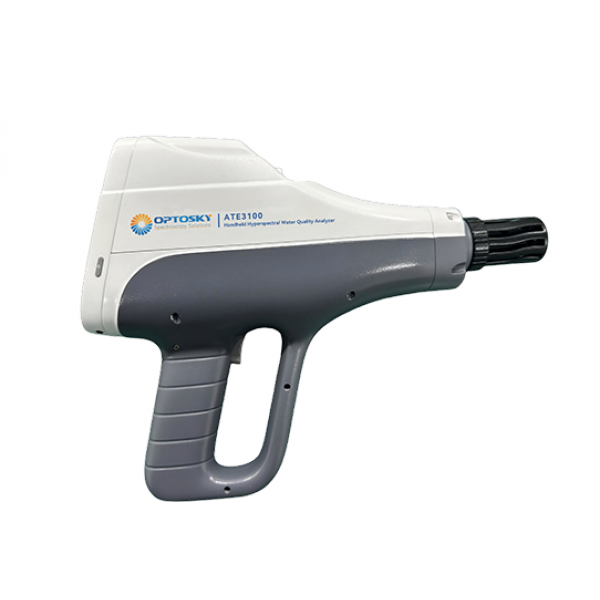

Handheld Hyperspectral Water Quality Analyzer
Product Code: ATE3100
Ask About This Product
application

The ATE3100 Handheld Hyperspectral Water Quality Analyzer is an independently developed portable water quality monitoring system by Optosky. It provides measurements for multiple water quality parameters, including turbidity, Chemical Oxygen Demand (COD), ammonia nitrogen, Total Phosphorus (TP), Total Nitrogen (TN), permanganate index, Biochemical Oxygen Demand (BOD), and Total Suspended Solids (TSS). The detection process requires no chemical reagents, and results are displayed in real-time. It features significant advantages such as compact size, portability, speed, accuracy, all-weather operation, and low power consumption, meeting the needs for rapid monitoring in scenarios like surface water and wastewater.

Monitoring data from the ATE3100 can be uploaded to a cloud platform, enabling real-time multi-point information collection, the generation of water quality distribution maps, and historical data review and overall trend analysis for specific regions. (To be developed later by the Cloud Network R&D Department.) Furthermore, Optosky has collaborated with industry peers to establish the industry standard "Technical Guideline for Spectral Water Quality Online Monitoring Systems."

  • Test parameters: Turbidity, Chemical Oxygen Demand (COD), Ammonia Nitrogen, Total Phosphorus, Total Nitrogen, Permanganate Index, Biochemical Oxygen Demand (BOD), Suspended Solids, Total Suspended Solids, etc.
  • Ultra-lightweight and compact design, easy to carry.
  • Built-in screen with Chinese operating system for user-friendly operation, requiring no special training to operate the instrument.
  • Integrated GPS automatically records sampling point locations.
  • Wavelength range: 185–1000 nm
  • Spectral resolution: 3 nm
  • Accuracy deviation: <20%
  • Built-in lithium battery with standby time >6 hours
  • Weight: <650 g (including battery)
  • Waterproof rating: IP65
  • Data transmission via Bluetooth; data can be directly uploaded to the monitoring cloud platform via an app.

  • Surface Water Quality Monitoring
  • Lake and Marine Water Quality Monitoring
  • Wastewater Quality Monitoring
  • Environmental Damage Assessment
  • Meteorology, Flux Stations
