Raman Spectrometer

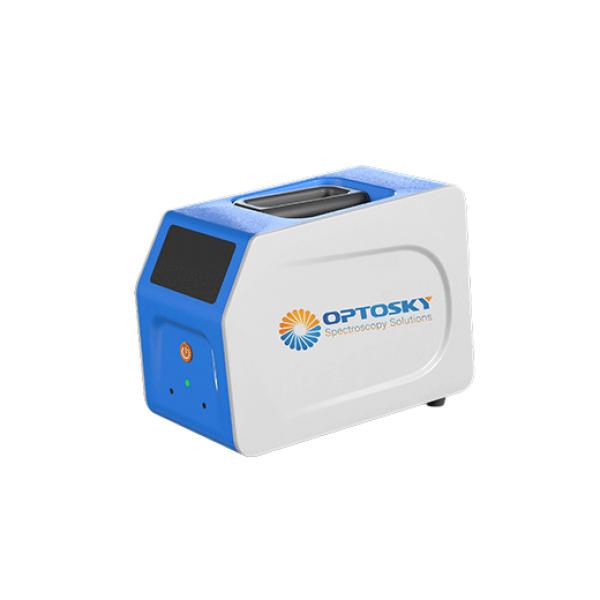

1064nm High-sensitivity & resolution Portable Raman Analyzer
Availability: In Stock
Raman Spectrometer
Download Data Sheet
Product Code: ATR3100
application
ATR3100 portable Raman spectrometer uses a cooled high-sensitivity Raman signal enhanced CCD, a high-efficiency Raman probe, an ultra-narrow linewidth laser with a power of up to 600mW, and combines high-reliability optical design, circuit design, structural design, and the measurement results are very stable and the signal-to-noise ratio is extremely high, making it very suitable for field operations. Remarkable reliability makes detection results accurate and reliable. Excellent low stray light conditions make spectrometers widely used, especially in biochemical analyzers, food safety, pharmaceutical engineering, etc. This versatile software facilitates the spectral analysis process in applications. Remote experiments accessed via the Internet make testing projects easier.
| Raman Spectrometer System Parameters | |
| Battery Power Time | No battery inside |
| Maximum power output | ≥500 mW |
| Interface | USB 2.0/LAN |
| Operating System | Computer operation |
| Integration time | 4ms-120s |
| Operating temperature | -25 - 50 ℃ |
| Operating Humidity | < 95% |
| Dimension | 300x225x132mm |
| Weight | 3.5kg |
| Raman spectrometer Relibility | |
| Spectral Stability | σ/μ<0.5% (COT8hours) |
| Temperature Stability | Spectral shift≤1cm-1 (10-40℃) |
| Spectral Range Change Stability | <±5% （in 5 ~ 40℃） |
| Raman Spectrometer Optical Parameters | |
| Entrance slit | 50 μm |
| Spectral Range | 250-2700cm-1 200-3300cm-1 150-4000cm-1 |
| Resolution | 250-2700cm-1: 4cm-1 200-3300cm-1: 5cm-1 150-4000cm-1: 7cm-1 |
| SNR | >3000:1 |
| Optical Path | f/4 C-T cross symmetric optical path |
| Focal Length | 98mm for incidence and output |
| Sensitivity | QE>40%, 6.5 μV/e- |
| Raman spectrometer Detector | |
| Full well capacity | 300 Ke |
| Detector Model | Ultra-high sensitivity and rapid cooling CCD |
| Spectral range | 200-1100 nm |
| Effective Pixels | 2048*64pixels |
| Dynamic range | 10000：1 |
| Pixel Size | 14×14μm |
| Raman Spectrometer Laser Parameters | |
| Central wavelength | 785nm (±0.5nm) |
| Half width | 0.08 nm |
| Laser Output | ≥500mW |
| Power Stability | σ/μ<±0.2% |
| Raman Spectrometer Probe | |
| Operating Distance | 6mm |
| Rayleigh Scatter Resistance | OD>8 |
| NA Raman Probe | 0.3 |
| Aperture | 7mm |
| Electrical parameter | |
| Power voltage | DC 5V(+/-5%) |
lHigh sensitivity FFT-CCD.
lThe detector TEC is cooled to -10℃.
lUltra-low noise circuit.
lPowerful embedded software.
lEliminate fluorescent background.
lPeak search and display.
lUSB 2.0.
lTouch operation.
lFriendly human-computer interface.
- Bioscience
- Pharmaceutical Engineering
- Forensic Analysis
- Agriculture And Food Safety
- Gemstones Identification
- Environmental Science
