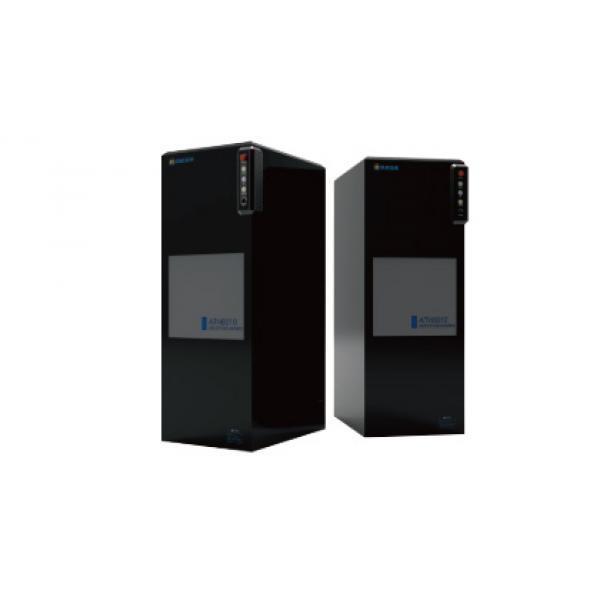

Lab Hyperspectral Imaging System
Product Code: ATH8010

Qty

Request a Quote or Info
application

The equipment combines technologies of hyperspectral imaging and HD camera, and it can acquire data possessing high spectral resolution and high spatial resolution, as a result of exploring spectral and spatial feature of materials. It can apply to sort out materials of tabaco, pharmaceutical drugs, foods, minerals, criminal document inspection, and true or fake identification etc.

The lab base hyperspectral system consists of hyperspectral imager, line source, HD camera, sample desk, focusing facility, and standard white board. Line source and line filed of view of hyperspectral imager keep in line in order to realize data acquisition through translation motion of sample desk. HD camera take whole pictures of initial zero position on sample desk, which are used to make image fusion to make up the disadvantage of spatial resolution is not enough, standard white board is used to performed reflectance correction on space and time range, in order to improve data inversion accuracy

hyperspectral
FOV width 210nm customized
Weight weight of splitting system: <900g
Spectral Range 400-1000nm
Spectral Resolution <2.3nm@30um slit size
Spatial Resolution <1nm or customized
Spectral Channels 270 4pixels binning
Spatial Channels 480 4pixels binning
MAX Frame Rate 80HZ
Reflectance Calibration Board 3%,50%
scan range 0-280mm Customized
material thickness 0-50mm
Dynamic Range 12bit
Visible Calibration Board 24-mega pixels replacable
WFOV 22@f=35mm
IFOV 0.9 mrad@f=35mm
Slit Size 30μm
NA of System F/2.4

Advantage:

Time and Space radiance intensity correction, greatly improve radiance calibration accuracy of time correction plus space correction.

Line source design matches field of view can improve light energy efficiency.

Auxiliary focusing, sample thickness adjusting to rise or descend in order to ensure clear image.

Auto-integration time, exposure time suit to sample reflectance

Auto scan, auto complete data acquisition

Integrated HD camera can improve spatial resolution, which makes easy matching among huge database.

Application:

Monitor Agriculture: plant diseases and insect pest, disaster, categories ID etc.

Forestry: Tree categories identification, Phytomass, nutrient elements, forest health etc.

Water Environment: Water quality parameters, water waste spatial distribution and migration analysis

Soil Pollution: heavy metal waste

Minerals: Mineral mapping, ingredients explore, metallogenic prognosis etc.

City geological substances classification and identification
