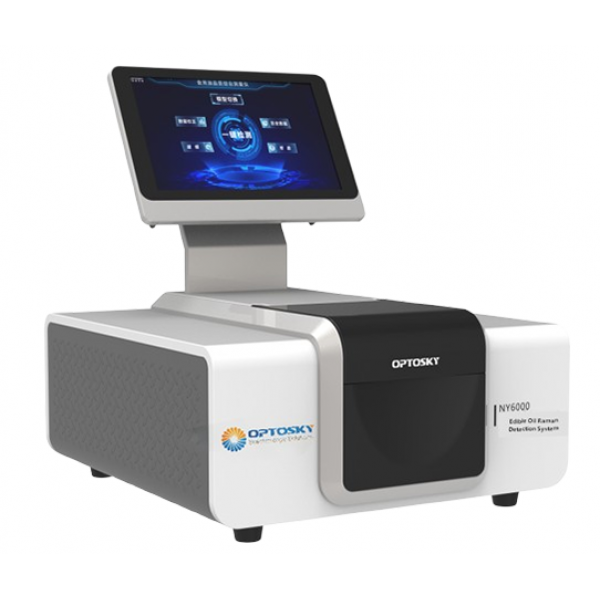

Edible Oil Raman Detection System
Download Data Sheet
Product Code: NY6000
Ask About This Product
application

NY6000 is a comprehensive edible oil quality detection system based on Raman spectroscopy technology. It can truly be a one-machine multi-functional system, achieving accurate and efficient comprehensive coverage of various edible oil indicators. It includes the detection of edible oil food safety indicators (such as mycotoxins, pesticide residues, acid value and peroxide value) and quantitative detection of edible oil fatty acid composition (such as erucic acid, high oleic acid, etc.). In addition, NY6000 can also perform high-end edible oil adulteration and origin identification.

NY6000 is equipped with multifunctional analysis and detection software to achieve rapid analysis of edible oil safety and quality indicators, support users to quickly obtain the information required for oil products, and enable users to make subsequent decisions more easily and improve the quality of edible oil products.

NY6000 is a research and application project of edible oil detection technology based on Raman spectroscopy analysis by Optosky. It is a technology and application innovation that fully expands Raman technology to the field of grain and oil detection.


Categories: Food Safety, Applications
Tags: NY
Detector
Spectral range 200-2600cm-1(1064nm);Wave number range supports customization
Detector Ultra-high sensitivity cooled (-10°C) back-illuminated 2048*64 array detector
Instrument
Spectral Stability σ/μ < 0.5% (COT 8 hours)
Temperature Stability Spectral Shift ≤ 1 cm-1 (10-40 ℃)
SNR >3000:1
Excitation wavelength 1064nm
Laser
Laser Power 450mW
Electrical parameter
Interface USB2.0,Network port
Categories: Food Safety, Applications
Tags: NY

  • One machine with multiple functions: It can perform quantitative and qualitative tests on the safety and quality indicators of edible oil.
  • Safe and environmentally friendly: No need to conduct complex chemical experimental analysis, avoiding the operator from contacting highly corrosive, highly toxic, flammable and explosive high-risk chemicals, improving safety;
  • High sensitivity: The use of high-sensitivity cooling CCD can realize the detection of low-doped edible oil doping;
  • Strong applicability: The instrument design takes into account both volume and performance, and meets the various indicators of edible oils such as tea oil, soybean oil, and olive oil;
  • One-button analysis: Equipped with powerful and user-friendly spectral analysis software, one-button operation means that both experts and first-time users of Raman spectrometers can quickly and accurately collect edible oil data and analyze edible oil indicators.

Categories: Food Safety, Applications
Tags: NY

  • Edible oil adulteration detection
  • Edible oil origin identification
  • Edible oil rating and identification
  • Edible oil storage quality determination
  • Food Safety:Edible oil safety evaluation
