Optosky Water Quality Testing Series: Reagent-Free, Multi-Parameter, Smarter

In fields such as ecological protection, industrial treatment, aquaculture, and emergency response, the ability to quickly, accurately, and continuously monitor changes in key water parameters is essential for environmental early warning, process control, and scientific management.



Optosky has continuously developed spectral technology for water quality analysis, building a multi‑level product system covering in‑situ online monitoring, portable sensing, and UAV remote sensing. It serves continuous monitoring and accurate assessment of various water bodies, providing a reliable data foundation for water environment safety.

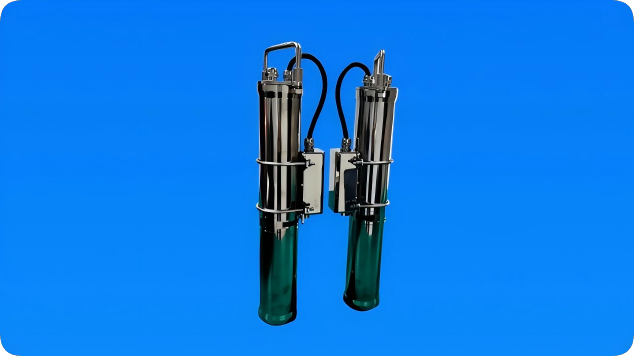

01  Product 1: ATE2000 Reagent-Free Full-Spectrum Water Quality Monitor

• Uses UV-Vis full-spectrum absorption principle – reagent-free, non-contact, low maintenance cost
• Supports simultaneous online monitoring of over 10 parameters including COD, TOC, BOD5, ammonia nitrogen, total phosphorus, total nitrogen, nitrate, nitrite, turbidity, TSS, color, and temperature
• Results in 3 seconds with controlled error – suitable for long-term monitoring of complex water bodies such as water plants, rivers, and outfalls
• Equipped with dual-beam compensation and automatic cleaning motor – excellent anti-interference and low maintenance
• Core components use pulsed xenon lamp – long life and high stability



02  Product 2: ATE2100 Reagent-Free Optical Water Quality Sensor

• Designed for COD and other organic pollutant detection – based on UV absorption, reagent-free, non-polluting, economical and environmentally friendly
• Second-level response speed and strong anti-interference algorithm – suitable for deployment and integration in urban water utilities, industrial sites, and surface waters.

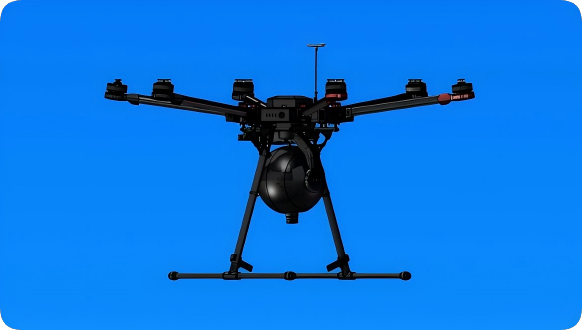

03  Product 3: ATE5000 UAV-Based Fluorescence Oil Spill Detection System

• Based on Laser-Induced Fluorescence (LIF) – μs response, extremely low detection limit, capable of detecting oil films thicker than 1μm
• Integrates high-resolution spectral detector and flight control platform – supports automated patrol, real-time image and data transmission, 15km video link, suitable for rivers, lakes, oil fields, and stations
• Built-in oil spectral library for identifying crude oil, diesel, gasoline, engine oil, etc. – supports day/night operation, data export, and event logging
• Up to 55 minutes of flight time – a highly sensitive, highly automated, anti-interference emergency monitoring system



Water quality monitoring is not only about environmental compliance but also directly affects urban operation, industrial compliance, and ecological safety. With ten years of technological accumulation, Optosky pushes water quality testing from “spot testing” to “sensing networks”, integrating spectral technology into every key link of pollution control, process supervision, and ecological restoration. Every accurate measurement is a deeper protection of water resources.
