800 Gigabit Ethernet
800 Gigabit Ethernet
Availability: In Stock
800 Gigabit Ethernet
Optosky
Add to Wish List Compare this Product
Product Code: OPTO_OT800G
Ask About This Product
application

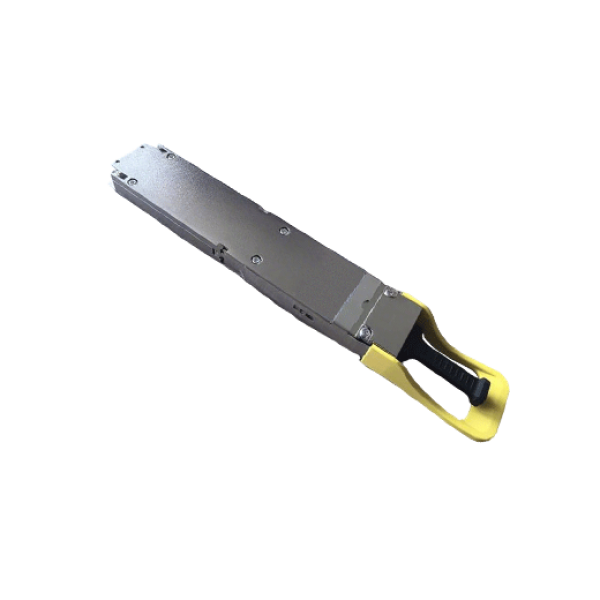

  • Optosky transceiver module is designed for use in 800 Gigabit Ethernet links over 500m single mode fiber. The module has 4 independent electrical and optical input/output channels operating up to 212.5Gbps per channel. This transceiver is operating on a set of wavelength on the ITU G.694.2 CWDM grid near 1310nm. The transmitter path of the module incorporates a 4:4 PAM4 re-timer ASIC integrated with a 4-channels modulator driver, control and bias for the four MZ modulators. On the receiver path, the optical FA is coupled to 4 photodiodes and a 4-channel TIA array, along with the PAM4 re-timer. The electrical interface of the module is compliant with the 800GAUI-4 interface as defined by IEEE 802.3dj, and compliant with Optosky MSA.

Categories: Optical Communication Components
Tags: OPTO_OT

  • Supports 850Gbps
  • Single 3.3V Power Supply
  • Up to 500m over SMF with KP4 FEC supported at the Host side
  • SMF MPO-12 connector
  • 4x212.5Gbps (PAM4) electrical interface
  • PIN and TIA array on the receiver side
  • Power dissipation < 15W, with inner FEC disabled
  • Case temperature range: 0°C to 70°C (commercial)
  • Safety Certification: TUV/UL/FDA*1
  • RoHS Compliant

Categories: Optical Communication Components
Tags: OPTO_OT

  • 1x800G Ethernet
  • 4x200G Ethernet
  • 2x400G Ethernet

Categories: Optical Communication Components
Tags: OPTO_OT
