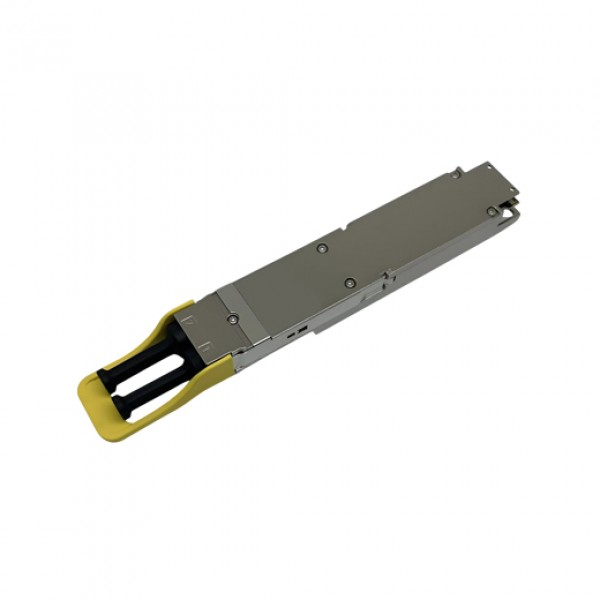

1.6T Transceivers Firmware
1.6T Transceivers Firmware
Availability: In Stock
1.6T Transceivers Firmware
Optosky
Add to Wish List Compare this Product
Product Code: OPTO_OT1.6T
Ask About This Product
application

  • Optosky transceiver module is designed for use in 1.6Tbps Ethernet links over 500m single mode fiber. The module has 8 independent electrical input/output channels operating up to 212.5Gbps per channel. This transceiver is operating on a set of wavelength on the ITU G.694.2 CWDM grid near 1311nm. The transmitter path of the module incorporates one 8:8 PAM4 re-timer ASIC integrated with high-swing output driver, externally SiPho PIC with CW lasers. The receiver path contains 8 photodiodes and two 4-channel TIA array, along with the PAM4 re-timer. The electrical interface of the module is compliant with the 1.6TAUI-8 interface as defined by IEEE 802.3dj, and compliant with Optosky MSA.

Categories: Optical Communication Components
Tags: OPTO_OT

  • Supports 1.6Tbps
  • Single 3.3V Power Supply
  • Up to 500m over SMF with KP4 FEC supported at the Host side
  • SMF Dual MPO-12 connector
  • 8x212.5Gbps (PAM4) electrical interface
  • PIN and TIA array on the receiver side
  • Power dissipation < 26W
  • Case temperature range: 15°C to 70°C (commercial)
  • Safety Certification: TUV/UL/FDA*1
  • RoHS Compliant

Categories: Optical Communication Components
Tags: OPTO_OT

  • 1x1.6T Ethernet
  • 4x400G Ethernet
  • 2x800G Ethernet
  • 8x100G Ethernet
  • 2x400G Ethernet
  • 4x200G Ethernet

Categories: Optical Communication Components
Tags: OPTO_OT
