Optosky Natural Rubber DRC/TSC Determination NIR Solution

The Optosky Dedicated Natural Rubber Near-Infrared (NIR) Spectrometer is a rapid testing device developed specifically for the natural rubber industry. It provides rapid determination of critical quality indicators, such as Dry Rubber Content (DRC) and Total Solids Content (TSC). This solution is ideal for quality inspection and control across the entire natural rubber supply chain—including latex harvesting, processing, and trading.

Industry Pain Points

• Extremely Slow Traditional Testing: The conventional oven-drying method for determining DRC takes 6 to 8 hours, severely bottlenecking latex collection and factory throughput.
• Lack of Rapid Field Tools: Latex collection points often lack quick testing methods, easily leading to transaction disputes regarding latex quality.
• High Operational Costs: Manual oven-drying procedures are tedious, heavily consume energy, and require immense labor costs.
• Unmonitored Quality Fluctuations: During the manufacturing phase, the DRC cannot be monitored in real time, causing significant fluctuations in final product quality.
• Prohibitive Equipment Pricing: Imported alternative instruments are overpriced with high maintenance costs, making wide-scale industry adoption difficult.

Our Solution

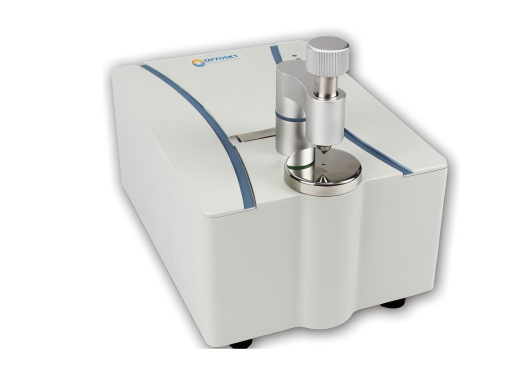

The Optosky Natural Rubber Testing Solution highlights our flagship ATP8900Plus Compact Fourier Transform Infrared (FTIR) Spectrometer. Utilizing advanced FTIR technology (covering the Mid-IR range of 7800–350 cm⁻¹) combined with dedicated calibration models developed for natural rubber, it delivers high resolution and an excellent signal-to-noise ratio. This allows for high-precision determination of latex DRC and TSC in just about 1 minute—boosting efficiency hundreds of times over compared to traditional methods.

• 1-Minute DRC/TSC Analysis: Maximizes operations, speeding up traditional testing timelines by several hundredfold.
• Zero Sample Pre-treatment: Directly measures fresh latex samples without any tedious preparation steps.
• Lab-Grade Precision: Delivers a level of accuracy that matches the standard oven-drying method, ensuring dependable results.
• Field-Ready Design: Portable and compact form factor, making it ideal for on-site latex collection stations.
• Multi-Region Calibration Models: Comes pre-loaded with regional calibration models tailored for major origins including Thailand, Malaysia, and Hainan/Yunnan in China.

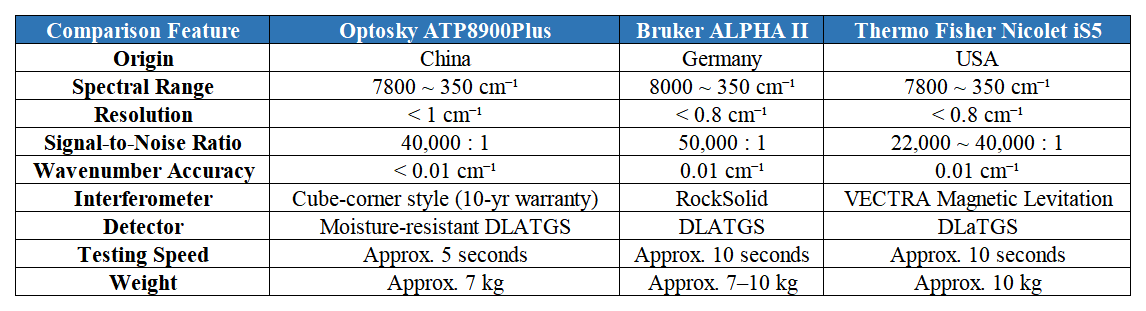

Competitive Comparison

Technical Parameters

• Recommended Model: ATP8900Plus Compact Fourier Transform Infrared (FTIR) Spectrometer

• Spectral Range: 7800 – 350 cm⁻¹ (Mid-Infrared)

• Spectral Resolution: < 1 cm⁻¹

• Signal-to-Noise Ratio (SNR): 40,000 : 1

• Wavenumber Accuracy: < 0.01 cm⁻¹

• Interferometer: High-stability cube-corner interferometer, 10-year warranty

• Beam Splitter: Dedicated Mid-IR Zinc Selenide (ZnSe) moisture-resistant beam splitter

• Detector: Moisture-resistant, high-sensitivity DLATGS detector

• Analysis Time: Approx. 5 seconds

• IR Light Source: Long-life Mid-IR ceramic light source, operating at 1550 K

• Operating Temperature: 5 – 40 ℃

• Power Supply: 110 – 240V AC, 50/60Hz

• Communication Interface: USB

• Dimensions: 333 × 285 × 245 mm (Mainframe)

• Weight: Approx. 7 kg

• Operating System: Windows 10, complete English processing software available

Customer Case Studies

• A Large Rubber Group in Thailand: Deployed for rapid field testing at plantation latex collection points, increasing efficiency by 5x and reducing quality disputes by 90%.

• A Rubber Processing Enterprise in Malaysia: Integrated online DRC monitoring into the production line, boosting the product qualification rate by 5%.

• Hainan Rubber Group (China): Rolled out rapid latex collection testing across 20+ collection hubs, dramatically accelerating the raw material procurement workflow.

• A Rubber Industrial Park in Yunnan, China: Replaced the traditional oven-drying method entirely, saving over 1 million RMB in annual testing costs.

• Market-Proven Track Record: Over 100+ units successfully deployed across major natural rubber producing regions in Southeast Asia and China.
