Breaking Monopolies: How ATP9110-25H Challenges the Gold Standard of Field Spectroradiometers

For years, remote sensing researchers, geologists, and precision agriculture specialists have relied on a few select international brands for field spectroscopy. The ASD FieldSpec 4 has long been considered an industry benchmark. However, the landscape of hyperspectral remote sensing is shifting.

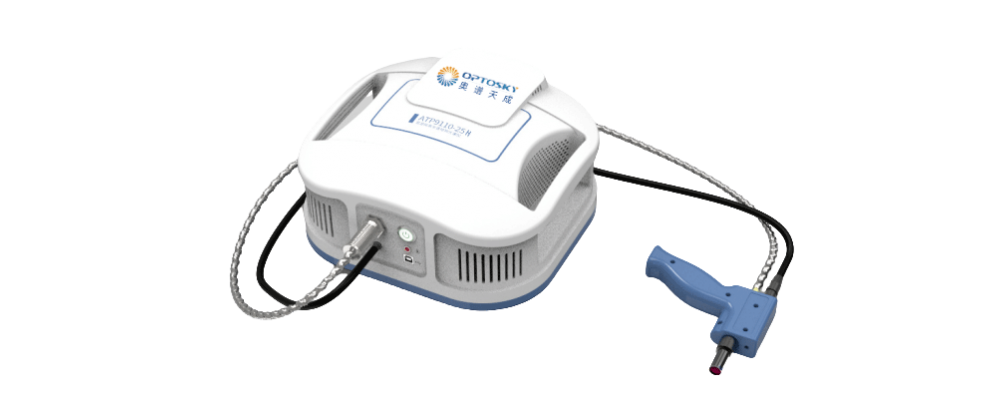

The ATP9110-25H, a high-performance portable field spectroradiometer, is stepping up as a powerful alternative, breaking long-standing technical monopolies and delivering superior performance across critical core metrics.

Let's dive into a technical head-to-head comparison to see how this modern field spectroradiometer stands out.

1. Broader Wavelength Range: Capturing the Full Spectrum

When conducting field measurements, missing a portion of the spectrum means missing vital environmental or material data. The ATP9110-25H expands your analytical capabilities by widening the scanning window.

• ASD FieldSpec 4: 350 - 2500 nm
• ATP9110-25H: 300 - 2500 nm

By extending down to 300 nm, the ATP9110-25H fully covers the Ultraviolet-Visible-Shortwave Infrared (UV-Vis-SWIR) bands. This enables researchers to capture critical UV-end spectral signatures essential for advanced environmental monitoring and complex material analysis.

2. Spectral Resolution: Precision Where It Matters Most

Higher spectral resolution allows you to distinguish subtle spectral features that would otherwise be blurred together. The ATP9110-25H delivers sharper resolution across key wavelengths:

Wavelength Band	ASD FieldSpec 4 Resolution	ATP9110-25H Resolution
Near VNIR (~750nm)	3 nm @ 700 nm	2.7 nm @ 756 nma
SWIR (1400/2100nm)	6 nm @ 1400/2100 nm	5 nm @ 1400/2100 nm



This boosted resolution means you can identify weak absorption features with significantly higher accuracy, giving you an edge in mineral mapping and vegetation stress analysis.

3. Massively Upgraded Data Density and Channels

Data density dictates the continuity of your spectral curves. The ATP9110-25H completely reimagines detector architecture by using a synchronized, high-density array across all bands.

Detector Array Channels

• ASD FieldSpec 4: Uses a mixed-channel configuration (512 channels for VNIR, and dual 520channels for the SWIR bands).
• ATP9110-25H: Utilizes a unified 1024 channel detector array across all three spectral ranges (300 - 1000 nm,1001 - 1800 nm,and 1801 - 2500 nm).

Total Data Output Channels

• ASD FieldSpec 4: 2151 channels
• ATP9110-25H: 3072 channels

With 3072 data channels, the ATP9110-25H offers unprecedented spectral continuity. This rich datapool provides much smoother curves and more detailed spectral signatures, which drastically improves performance in:

• High-accuracy vegetation classification
• Soil Organic Carbon (SOC) inversion modeling
• Agricultural product quality inspection
• Machine learning and predictive spectral modeling



4. Real-World Validation and Field Performance

An instrument is only as good as its performance in the field. The ATP9110-25H has already undergone rigorous field testing and successful project acceptance by top-tier research institutions, proving its reliability in diverse environments.

• Southwest University of Science and Technology: Successfully deployed and verified foracademic research applications.

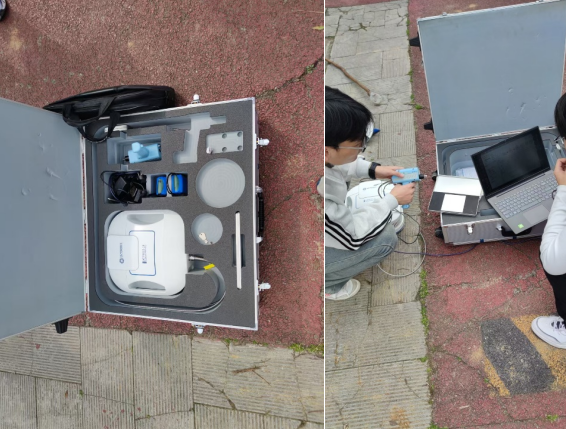

Figure 1: Project Acceptance at Southwest University of Science and Technology

• Western Agricultural Research Center, Chinese Academy of Agricultural Sciences: Utilizedfor high-precision agricultural remote sensing and field monitoring.

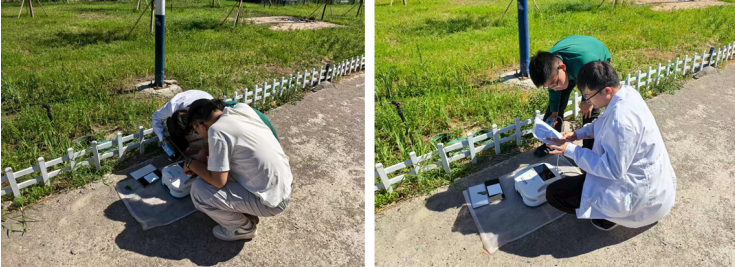

Figure 2: Project Acceptance at the Western Agricultural Research Center, Chinese Academy of Agricultural Sciences

Why Choose ATP9110-25H?

Beyond the technical specifications, choosing the ATP9110-25H offers a highly competitive localized advantage. Users benefit from rapid-response customer service, highly flexible customization options, and significantly lower long-term maintenance costs compared to imported alternatives. It represents a highly cost-effective, self-controllable solution for modern field spectroscopy.

If you are looking to upgrade your remote sensing capabilities with a spectroradiometer that offers broader bands, finer resolution, and superior data density, the ATP9110-25H is the field-ready alternative you’ve been waiting for.
