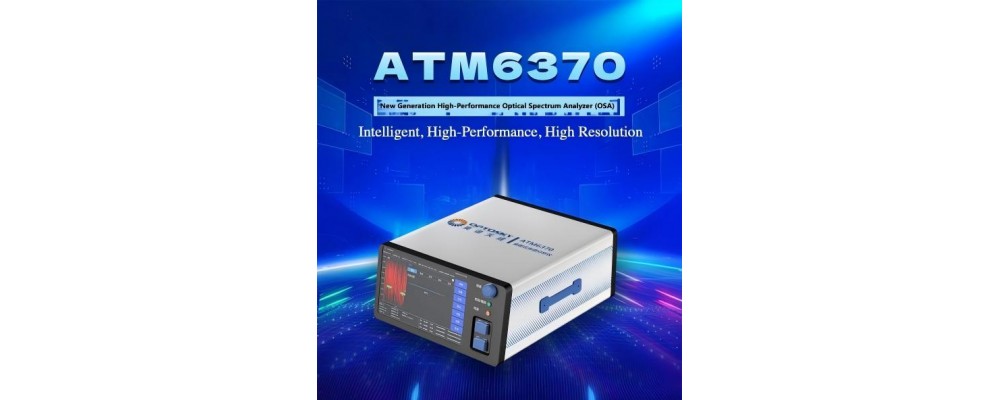

Product Introduction | ATM6370 High-Performance Optical Spectrum Analyzer (OSA)

The ATM6370 Optical Spectrum Analyzer is an ultra-high-resolution OSA specially developed by Optosky for the fiber optic communication and fiber optic sensing industries. Utilizing a simulation-optimized optical system and precision assembly techniques, it ensures high resolution and high stray light suppression.

It achieves a maximum spectral resolution of 0.02nm, a maximum measurement power of +20dBm, and a minimum power sensitivity down to -90dBm. The ATM6370 features a built-in calibration laser source for automatic wavelength calibration and is equipped with a large high-definition touchscreen for integrated intelligent operation.

Suitable for precision spectral testing needs in scientific research, optical communications, laser manufacturing, fiber optic sensing, and other industries.

01  Addressing the Pain Points of Existing Spectrum Analyzers

• Complex operation?

Touchscreen + Android, zero-learning-curve operation

• Can't integrate with MES?

Rich interfaces: LAN, WIFI, 4×USB

• Insufficient intelligence?

Intelligent signal calibration and adjustment functions

• High Stray Light?

Dual-grating, double-dispersion design delivers industry-leading low stray light performance.

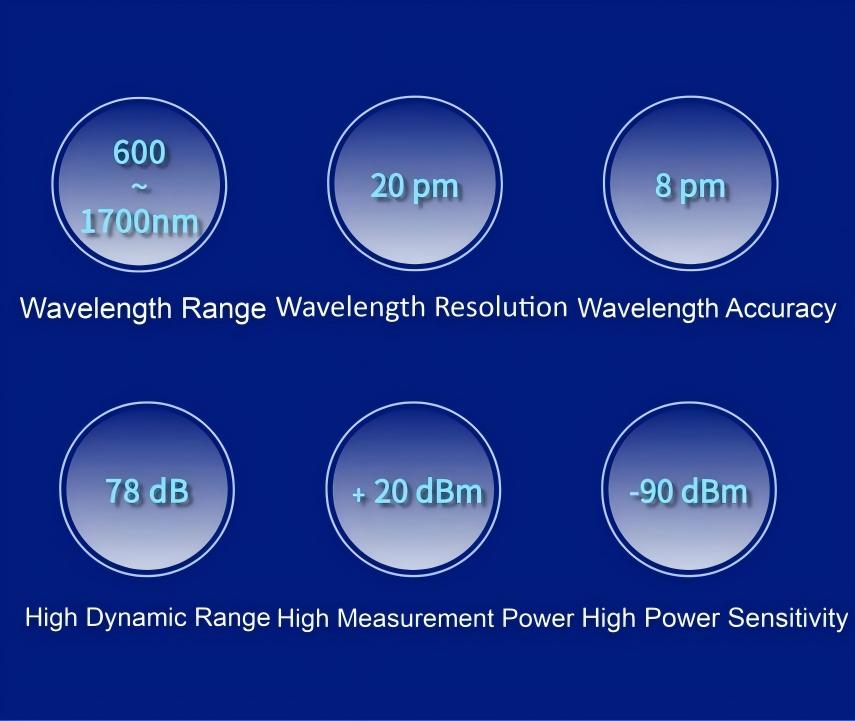

02  Product Features

03  Integrated Smart Touch Operation

• Automatic Calibration

Performs spectrometer wavelength calibration using internal and external light sources.

• Flexible Configuration

Set scanning range, selectable resolutions, and multiple light intensity levels (including auto mode).

• Powerful Functionality

Auto repeat measurement, single/repeat scanning, average scanning, external trigger scanning, etc.

• Professional Measurement

Spectral bandwidth measurement, notch bandwidth measurement, SMSR measurement, DFB-LD/FP-LD/LED measurement, PMD measurement.

• Rich Algorithms

Automatic peak/valley finding, spectral calculation, normalization calculation, peak fitting, etc.

04  Specifications

Parameter	Specification
Model	ATM6370-17
Wavelength Range	600-1700 nm
Wavelength Accuracy	20 pm (1520~1580 nm)0.2 nm (full wavelength range)
Wavelength Resolution Setting	0.02-2 nm
Maximum Sampling Points	200000
Power Sensitivity	Min. -90 dBm (1300~1620 nm)
Maximum Input Power	+20 dBm (full wavelength range)
Power Accuracy	±0.4 dB
Power Linearity	±0.05 dB
Dynamic Range	73 dB (Peak ±1.0 nm, Resolution: 0.05 nm, Typical value 78 dB)
Display & Operating System	14-inch large touchscreen, Android OS
Storage	512 GB
Interfaces	4×USB, Ethernet, WIFI, Bluetooth, RS485Trigger input and output interfaces
Dimensions	440 × 240 × 480 mm
Note *Performance may vary by application and configuration. For personalized guidance, please contact Optosky.
